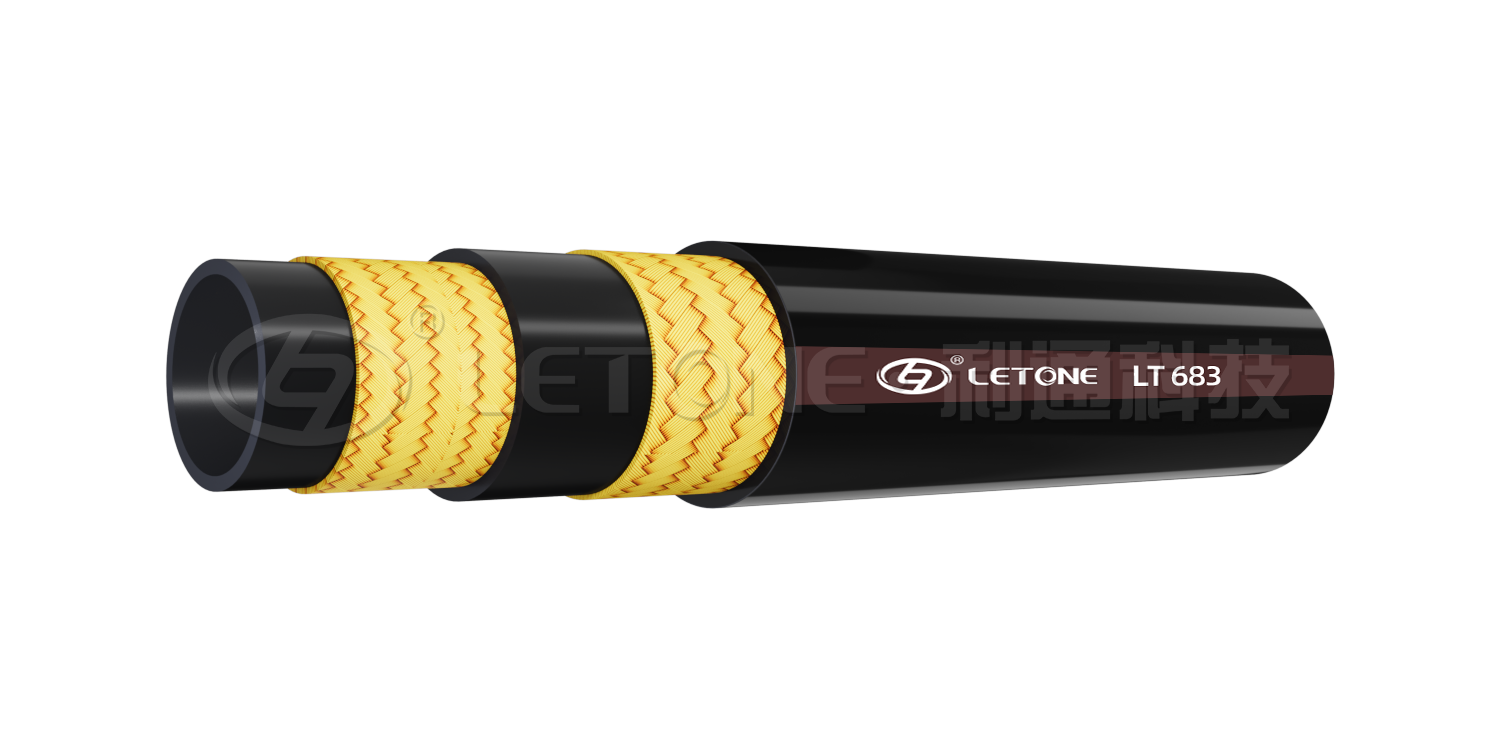

EN857 SC Selang Hidrolik Jalinan Kawat
| Specification | I.D | W.D | O.D. | Max.W.P | P.P | Min.B.P. | Min.B.R. | W.T | |||||||
| SIZE | Min | Max | Min | Max | Min | Max | |||||||||
| IN | mm | mm | mm | mm | mm | mm | MPa | psi | MPa | psi | MPa | psi | inch | mm | kg/m |
| 1/4-1 | 6.1 | 6.9 | 9.9 | 10.9 | 11.8 | 13.2 | 22.5 | 3260 | 45.0 | 6265 | 90.0 | 13050 | 2.95 | 75 | 0.18 |
| 5/16-1 | 7.7 | 8.5 | 11.2 | 12.2 | 13.1 | 14.5 | 21.5 | 3120 | 43.0 | 6235 | 86.0 | 12470 | 3.35 | 85 | 0.20 |
| 3/8-1 | 9.3 | 10.1 | 13.3 | 14.3 | 15.1 | 16.5 | 18.0 | 2610 | 36.0 | 5220 | 72.0 | 10440 | 3.54 | 90 | 0.27 |
| 1/2-1 | 12.3 | 13.5 | 16.4 | 17.6 | 18.9 | 20.3 | 16.0 | 2320 | 32.0 | 4640 | 64.0 | 9280 | 5.12 | 130 | 0.35 |
| 5/8-1 | 15.5 | 16.7 | 19.8 | 21.0 | 21.9 | 23.3 | 13.0 | 1885 | 26.0 | 3770 | 52.0 | 7540 | 5.91 | 150 | 0.42 |
| 3/4-1 | 18.6 | 19.8 | 23.1 | 24.5 | 25.6 | 27.2 | 10.5 | 1520 | 21.0 | 3045 | 42.0 | 6090 | 7.09 | 180 | 0.54 |
| 1-1 | 25.0 | 26.4 | 30.5 | 31.9 | 33.2 | 34.8 | 8.8 | 1280 | 17.6 | 2550 | 35.5 | 5100 | 9.06 | 230 | 0.78 |
| 1/4-2 | 6.1 | 6.9 | 11.2 | 12.2 | 12.9 | 14.3 | 40.0 | 5800 | 80 | 11600 | 160.0 | 23200 | 2.96 | 75 | 0.28 |
| 5/16-2 | 7.7 | 8.5 | 12.8 | 13.8 | 14.5 | 15.9 | 35.0 | 5075 | 70 | 10150 | 140.0 | 20300 | 3.35 | 85 | 0.32 |
| 3/8-2 | 9.3 | 10.1 | 14.9 | 15.9 | 16.8 | 18.2 | 33 | 4785 | 66 | 9570 | 132.0 | 19140 | 3.54 | 90 | 0.43 |
| 1/2-2 | 12.3 | 13.5 | 18.0 | 19.2 | 20.0 | 21.6 | 27.5 | 3990 | 55 | 7975 | 110.0 | 15950 | 5.12 | 130 | 0.52 |
| 5/8-2 | 15.5 | 16.7 | 21.4 | 22.6 | 23.2 | 24.8 | 25 | 3625 | 50 | 7150 | 100.0 | 14500 | 6.69 | 170 | 0.66 |
| 3/4-2 | 18.6 | 19.8 | 25.0 | 26.4 | 27.4 | 29.0 | 21.5 | 3120 | 43 | 6235 | 86.0 | 12470 | 7.87 | 200 | 0.83 |
| 1-2 | 25.0 | 26.4 | 32.4 | 33.8 | 34.5 | 36.1 | 16.5 | 2390 | 33 | 4785 | 66.0 | 9570 | 9.84 | 250 | 1.17 |
Isi kebutuhan Anda di sini, dan kami akan mengirimkan solusi dan penawaran yang disesuaikan kepada Anda melalui informasi kontak yang telah Anda berikan.
Focusing on the field of fluid technology, Letone Technology prioritizes "low bending, high pressure, long life, and multi-functionality" in its product innovation and iteration.
